VMS 3040 Automatic Mobile Phone Accessories Video Measuring Machine

FOB Reference Price:Get Latest Price
$4,000.00 - $7,000.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Zotai
Model Number:
ZT-6004
Product name:
VMS 3040 Automatic Mobile Phone Accessories Video Measuring Machine
Type:
Automatic
Application:
Hardware Electronic component
Warranty:
24 months
Power Supply:
220V AC 50HZ
XYZ Trave Range(mm):
400*300*200
Metal Table Size(mm):
650X530
Max Load(kg):
25kg
X ,Y Axis Accuracy(μm):
3.0+L/200
Z Axis Accuracy(μm):
5.0+L/100
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
VMS 3040 Automatic Mobile Phone Accessories Video Measuring Machine Package:
1. Plastic wrap moisture
2. Fixed on the bottom of the wooden box
3. Standard export wooden box packaging, reinforcement
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description

ZT-6004 A-CNC Standard Automatic Video Measuring Machine

Product Description

Main parameters :

Model

A300-CNC

A400-CNC

          A500-CNC

XYZ Trave Range(mm)

300×200×200

400×300×200

500×400×200

Dimension(mm)

1450X1050X 1700

1600X1200X 1700

1800X1400X1700

Metal Table Size(mm)

550X425

650X530

750X625

Glass Table Sixe(mm)

425X320

525X420

625X520

Weight(kg)

 600

700

900

Max Load(kg)

 25

25

25

X ,Y Axis Accuracy(μm)

3.0+L/200

Z Axis Accuracy(μm)

5.0+L/100

X,Y Move Speed

0-400mm/S(Can Optional)

Z Move Speed

0-100m/S(Can Optional)

Control Mode

Joystick+Software

Linear Scale

Resolution 0.0005mm

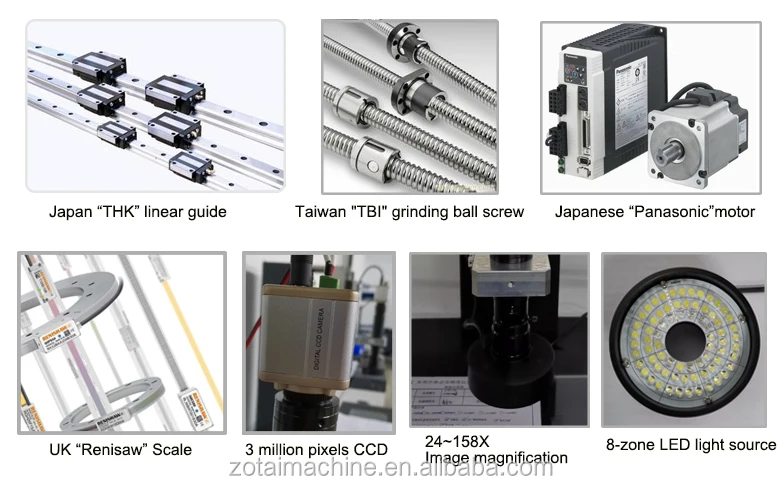

Linear Guide

Taiwan“Hiwin”P grade linear guideway(move parallel accuracy≤0.001mm)

Screw

Taiwan TBI" grinding ball screw

Bearing

Japan's original "NSK" double combination centripetal ball bearings

Motor

Japan "Nitko" AC synchronous servo motor,Positioning accuracy≤0.001mm

Limit Switch

Japan“Omron”limit switch

Joystick

Germany“MEGATRON”Hall Style,Can lock axis

Cameral

1.3M Pixel hige resolution color digital camera (kilomega network )

Video Card

High resolution dual channel color video card

Illumination

Profile

LED cold light,parallel light

Surface

4 ring 8 segment LED cold light,with segmented independent control & 256 level programmable brightness adjustment

Optics

 Auto GPS lens,1:6.5 continual zoom

Magnification

Optical zoom ratio:0.7~4.5×;Image zoom ratio:24~158X

Software

SBK-CNC Special automatic measurement software

Power

220V/50Hz/3A

Working Environment

Temperature 20℃±2℃,Temperature change<2℃/hr,Humidity30~80%

Table

Built-in switch power, controller, motor driver, power control switch, indicator light, emergency stop switch, mobile roller



Features:

Stand Automatic models, stable quality



Application:

Applicable to a wide range of industries, mainly used in automotive parts, 3C mobile phone accessories, mobile phone flat panel, precision hardware manufacturing.

6005

Related Products

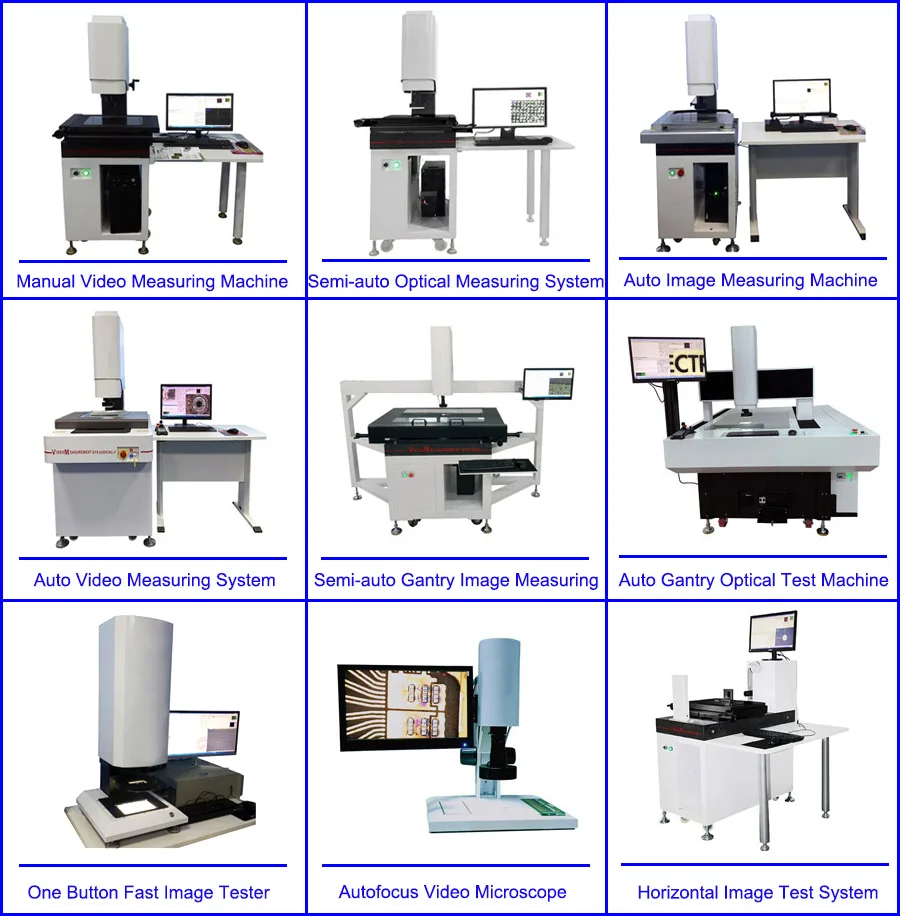

We can produce all Video Measuring System:

Packaging & Shipping

Test Machine Package2

Our Services

Zotai Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.

Onsite Service:

1. Device installation;

2. Equipment Operation Test Technology training;

3. Equipment Calibration;

4. Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;

2. Mail Seamless Docking;

3. Video Conferencing;

4. Artificial free door-to-door service

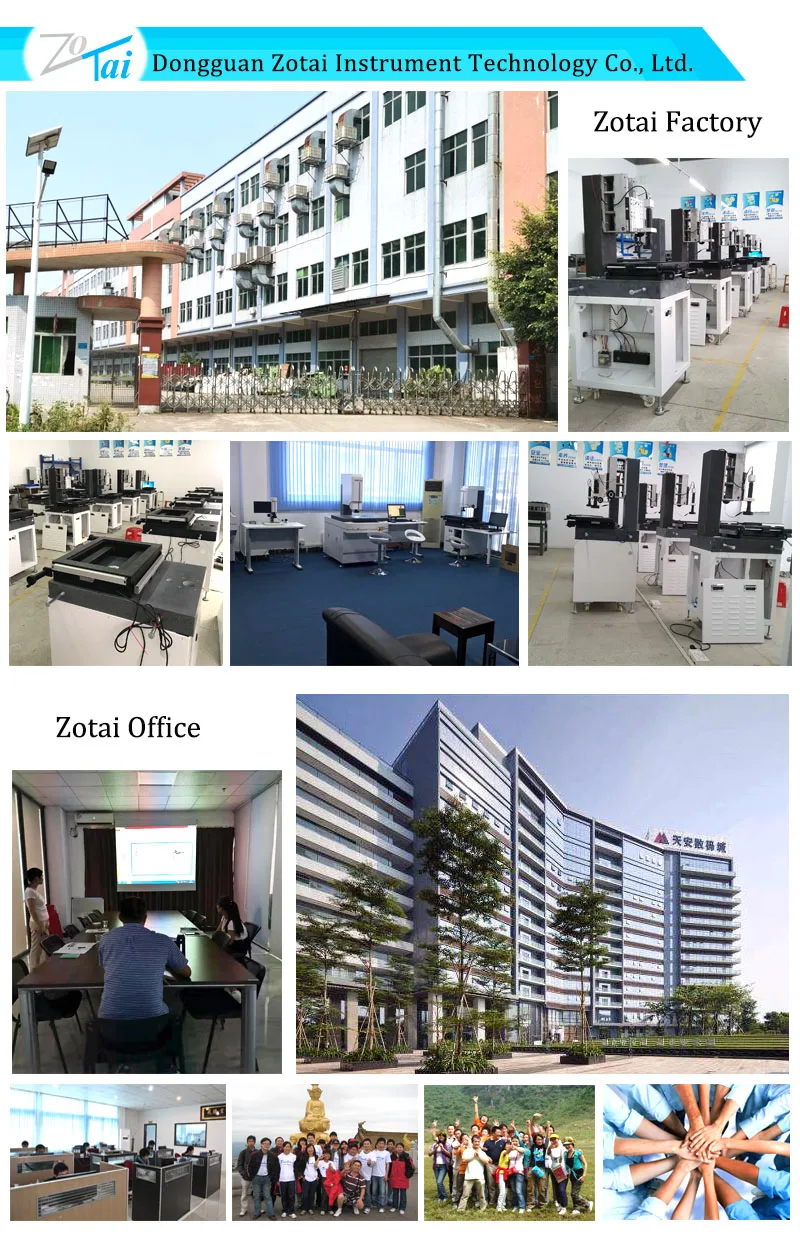

Company Information

Dongguan Zotai Instrument Technology Co., Ltd. specializes in rubber and plastic testing machine, metal detector, textile testing machine and shoe testing machine for more than 8 years. With advanced technology, excellent product quality and best customer service, the products are exported to more than 100 products. Countries and regions have won praises from customers around the world.
We have a professional design team that can customize individual products according to customer requirements.
If you have any questions or concerns, the sales and after-sales service department will respond to you within 24 hours.


FAQ

1.Are your company a trading one or a factory ?

Factory + trade (integration), 8 years focusing on test instruments field,5 years exporting experience.

OEM is also acceptable for us.

2.How to choose the most suitable products?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

3.Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

4.How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.

5.How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

6.What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
